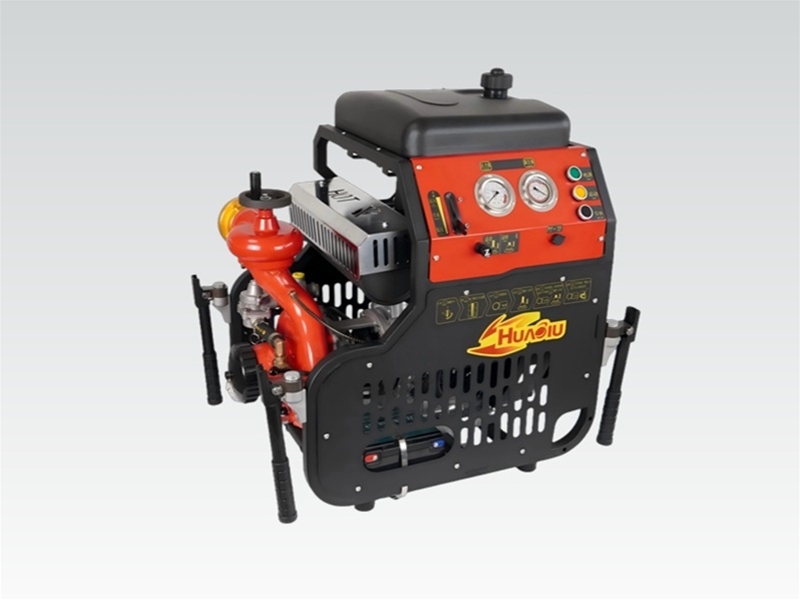

The new integrated intelligent control panel features one-click start, and realizes one-click priming, water discharge and other functions. No professional training is required, making operation simpler and ensuring efficient equipment operation.
Equipment with automatic charging device function can ensure that the machine charges the battery by itself during operation, keeping the battery fully charged.
Supports 180° free rotation, can flexibly adjust the water flow direction, efficiently adapt to different water usage scenarios, and significantly improve water use efficiency.
The improved vacuum pump cavity can empty the air in the pipe in a short time, achieving faster water discharge and higher priming. It also has the environmental advantage of zero oil pollution and requires no oil filling.
| Engine | Two-cylinder, Four-stroke, Horizontal, Air-cooled Gasoline Engine |
|---|---|
| Water Pump Type | Single-stage Centrifugal Pump |
| Priming Method | Oil-Free Vacuum Pump Priming |
| Starting Method | Manual & Electric Start |
| Water Inlet | 90 mm |
| Water Outlet | 65/80 mm |
| Rated Pressure | ≥0.65 MPa |
|---|---|
| Rated Flow | ≥1400 L/min |
| Standard Suction Depth | 7 m |
| Maximum Lift | ≥100 m |
| Dimensions | Approx. 780*710*800mm |
| Weight (Excluding oil, battery and other accessories) | Approx. 106kg |
Integrated Control Panel
Oil-Free Vacuum Pump Priming
Visual Oil Level Indicator
Optional Dual Water Outlets
